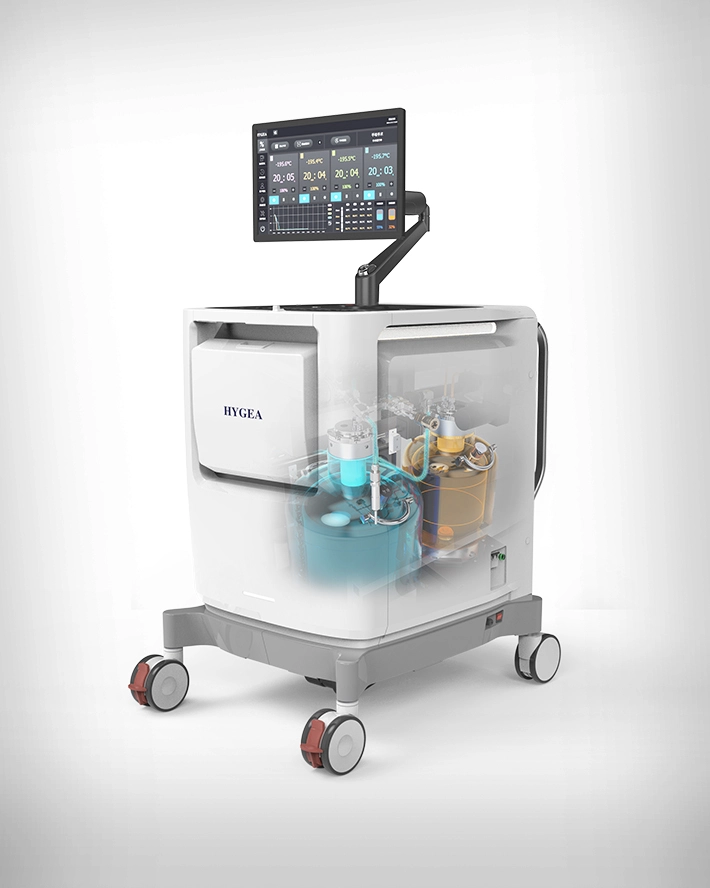

AI EPIC Co-Ablation System is an advanced co-ablation platform that integrates ultra-low-temperature cryoablation (–196 °C) with controlled high-temperature heating (+85 °C) to achieve precise, effective tumor destruction. By combining freezing and heating within a single minimally invasive system, it enhances ablation efficacy while preserving surrounding healthy tissue, offering physicians greater control, procedural safety, and clinical flexibility across multiple tumor types.
High-Performance & Safe Tumor Ablation
Proprietary Co-Ablation system ( ‒196 °C to + 85 °C) achieves more comprehensive tumor destruction.
Needle track ablation minimizes bleeding and reduces the risk of tumor cell seeding.
Enables large-volume ablation with fewer probes & punctures, delivering strong efficacy.
Efficient vacuum-insulated probe minimizes non-target injury.
Precise Control of the Ablation Zone
A wide probe portfolio and multi-channel capability allow tailored treatment strategies for tumors of different sizes and complexities.
Imaging-guided iceball visibility facilitates accurate ablation margins and confident tumor coverage.
Cost-Effective Cancer Care
Lower probe consumption and the use of liquid nitrogen with ethanol help reduce procedural costs.
All-in-one compact unit enhances operator safety.
Compatible with the system’s ablation range of -196 °C to +85 °C, the probes enable reliable operation across extreme temperatures.
Vacuum-insulated design enhances HCPs’ safety and prevents injury to non-target tissues.

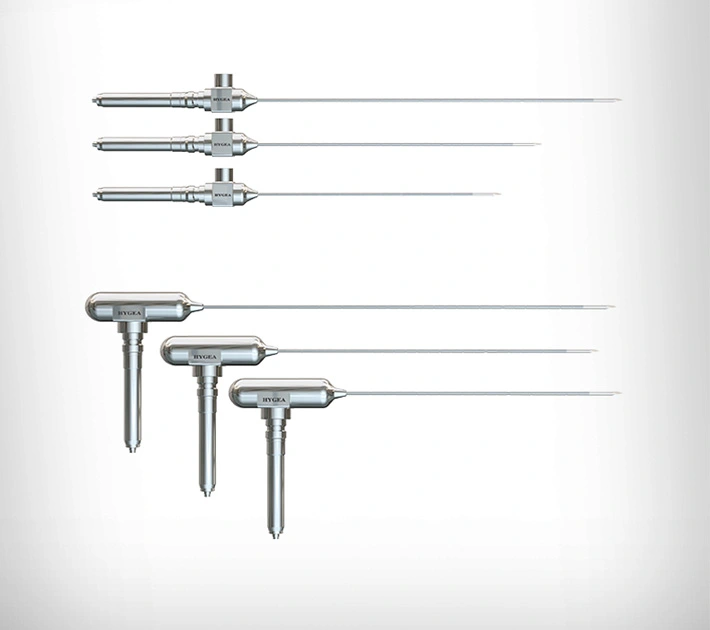

Versatile probe options provide variable ablation zones. A single probe enables large-volume ablation, reducing the need for additional probes and punctures.

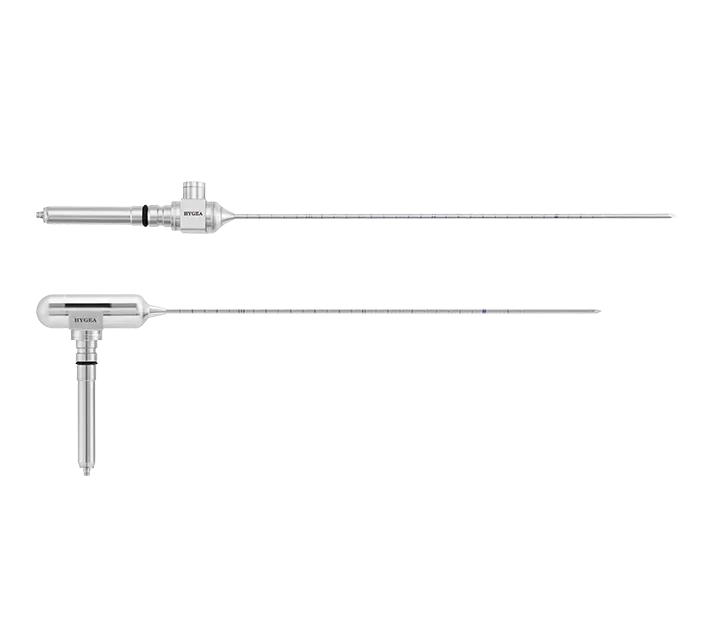

ELITE Sterile Co-Ablation Probe
| Model | Configuration | Shaft Length | Active Zone Length | Shaft Diameter |
| ACL17 | Straight | 180 mm | 15 mm | 1.7 mm/16G |
| ACS17 | Straight | 140 mm | 15 mm | 1.7 mm/16G |
| ACX17 | Straight | 120 mm | 15 mm | 1.7 mm/16G |
| ABL20 | Straight | 180 mm | 30 mm | 1.98 mm/14G |
| ABS20 | Straight | 140 mm | 30 mm | 1.98 mm/14G |
| ABX20 | Straight | 120 mm | 30 mm | 1.98 mm/14G |
| ADL26 | Straight | 200 mm | 35 mm | 2.6 mm / 12G |
| RCL17 | Angled 90° | 180 mm | 15 mm | 1.7 mm / 16G |
| RCS17 | Angled 90° | 140 mm | 15 mm | 1.7 mm / 16G |
| RCX17 | Angled 90° | 120 mm | 15 mm | 1.7 mm / 16G |
| RBL20 | Angled 90° | 180 mm | 30 mm | 1.98 mm / 14G |
| RBS20 | Angled 90° | 140 mm | 30 mm | 1.98 mm / 14G |
| RBX20 | Angled 90° | 120 mm | 30 mm | 1.98 mm / 14G |
| RBL26 | Angled 90° | 180 mm | 30 mm | 2.6 mm / 12G |
| RBS26 | Angled 90° | 140 mm | 30 mm | 2.6 mm / 12G |
| RBX26 | Angled 90° | 120 mm | 30 mm | 2.6 mm / 12G |
| RAL26 | Angled 90° | 180 mm | 50 mm | 2.6 mm / 12G |
| RAS26 | Angled 90° | 140 mm | 50 mm | 2.6 mm / 12G |
| RAL30 | Angled 90° | 180 mm | 50 mm | 3.0 mm / 11G |
| RAS30 | Angled 90° | 140 mm | 50 mm | 3.0 mm / 11G |
Generator
| Model | Output Chanels | Dimentions(cm) | Weight |
| AI EPIC S20U Co-Ablation System | 2 | 101(L)*77(W) *115(H) | 240-280 Kg |
| AI EPIC S40U Co-Ablation System | 4 | 101(L)*77(W) *115(H) | 240-280 Kg |
Before placing an order, please consult your sales representative to confirm model availability
The Co-Ablation system and probes are intended exclusively for use by qualified healthcare professionals, in accordance with the instructions provided in its user manual..
Indications for Use：
Oncology Ablation of cancerous or malignant tissue. Ablation of benign tumors. Palliative intervention. Thoracic Surgery Ablation of cancerous lesions. Urology Ablation of prostate tissue in cases of prostate cancer and benign prostatic hyperplasia. Gynecology Ablation of malignant neoplasia or benign dysplasia of the female genitalia. Proctology Ablation of benign or malignant growths of the anus and rectum. Ablation of hemorrhoids. General Surgery Destruction of warts or lesions. Palliation of tumors of the oral cavity, rectum, and skin. Ablation of breast fibroadenomas. Ablation of leukoplakia of mouth, angiomas, sebaceous hyperplasia, basal cell tumors of the eyelid or canthus area, ulcerated basal cell tumors, dermatofibromas, small hemangiomas, mucocele cysts, multiple warts, plantar warts, hemorrhoids, perianal condylomata, pilonidal cysts, actinic and seborrheic keratoses, cavernous hemangiomas, recurrent cancerous lesions. Dermatology Ablation or freezing of skin cancers and other cutaneous disorders. The clinical indications may vary by region. Please contact us for additional information or refer to our user manuals.
